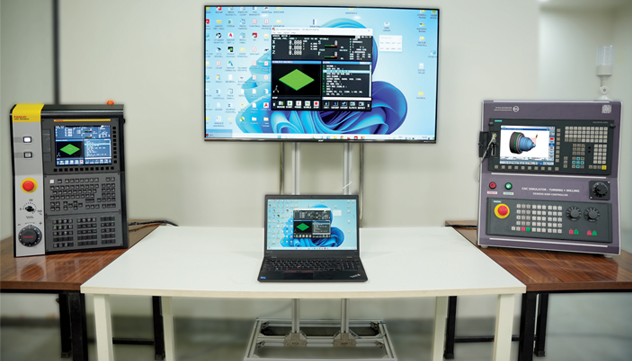

CNC Simulation Lab
CNC Simulation lab from Hytech Automation is designed to provide hands on CNC
Operating
experience to students on Fanuc as well as Siemens CNC Controllers. Both
Simulators (Siemens and
Fanuc) are equipped with actual CNC Controllers from respective OEMs.
Each Controller can be
operated as either a 2 Axis turning machine or a 3 axes milling machine. In
Hytech Automation CNC
Simulation lab, each simulator is completely integrated with CAD CAM Software
from either PTC Creo
or Siemens NX. User can generate the CAM program from these softwares and
execute the same on
any of the CNC Simulator directly through LAN / WiFi communication.
Design the program in CAD Software
Generate NC Codes from CAM Software
Transfer the CAM Program from computer to CNC Simulators through Ethernet Communication
Simulate the program on CNC Simulator in 3D and replicate the simulator on PC / TV
Siemens CNC Simulator is equipped with Siemens 828D Controller which comes with an option to be operated as either 2 Axes turning controller or a 3 axes milling controller. MOP as well as MPG in the Simulator is from Siemens. Tower lamp provided on the simulator can be programmed from CNC inputs and outputs.
Based on the FANUC 0iF platform,
the Fanuc simulator will allow you
at power on to switch between
milling and turning configurations
to teach programming, navigation
and operation on the world’s most
popular CNC control. Simple
configurations make it easy to
learn how to operate and edit data
on a modern FANUC control.
FANUC’s MGi conversational
interface allows user to graphically
generate programs that can be
simulated in 3D, prior to being
converted back to conventional NC
programs to be used on machine
tools using FANUC controls.
Uploading and downloading (read
and punch) functions are
facilitated by means of the
standard Flash ATA interface and
USB interface, and DNC functions
are supported by Ethernet and
Flash ATA card.
Simulators provide a safe environment for learning and operating a CNC Controller (Fanuc or Siemens). If you can perform a task with the Simulator, you will then be able to perform the task on an actual CNC that is connected to a CNC machine.
Simulator is equipped to provide 3D Simulation of the programs. In Hytech Didactic CNC Simulation Lab, Siemens simulator is integrated with Siemens NX CAD CAM Software or PTC Creo CAD CAM Software. User can create CAM Programs and directly transfer the same on Simulators.
With an addition of Siemens Sinutrain and Fanuc NC Guide, user can integrate CAD CAM Software with Sinutrain, NC Guide as well as Fanuc and Siemens CNC Simulators.
Hytech Didactic is a trusted name when it comes to providing high-quality educational CNC solutions that empower students and professionals with practical skills in CNC programming and operations. As industries continue to advance with automation and precision machining, the demand for skilled CNC operators is rising rapidly. To meet this need, we offer a wide range of educational CNC simulators that replicate real-world machining environments, making learning both effective and safe. Our CNC simulators are designed with user-friendly interfaces and advanced features, ensuring that learners get hands-on experience in CNC programming, tool path simulation, and machining practices without the risks associated with operating actual machines.
If you are looking for educational CNC in Pune, Hytech Didactic provides customized training solutions for engineering colleges, technical institutes, and skill development centers. With our expertise in industrial automation and training equipment, we help institutions bridge the gap between academic knowledge and industrial application. Our educational CNC simulator products support learning for FANUC, Siemens, and other leading CNC control systems, enabling students to gain real-time programming exposure.
We also extend our services across Maharashtra, making Hytech Didactic a reliable choice for educational CNC in Maharashtra. Whether it is Pune, Mumbai, Nashik, Nagpur, Aurangabad, or any other region, our training solutions are widely adopted by institutes that focus on preparing their students for the modern manufacturing industry. Our CNC simulators are durable, cost-effective, and backed by technical support to ensure seamless integration into training programs.
With Hytech Didactic’s educational CNC simulators, learners can practice programming, optimize tool paths, and simulate machining processes on virtual platforms before working on real machines. This not only reduces machine downtime but also builds confidence and competence among students. By combining theoretical learning with practical simulations, we ensure that future engineers and operators are industry-ready.
Hytech Didactic continues to lead as a manufacturer and supplier of advanced educational CNC solutions in Pune and Maharashtra, helping institutions enhance their teaching methodologies and preparing students for successful careers in CNC technology and manufacturing.
