PLC AND HMI Controlled Automated Bottle Filling Station

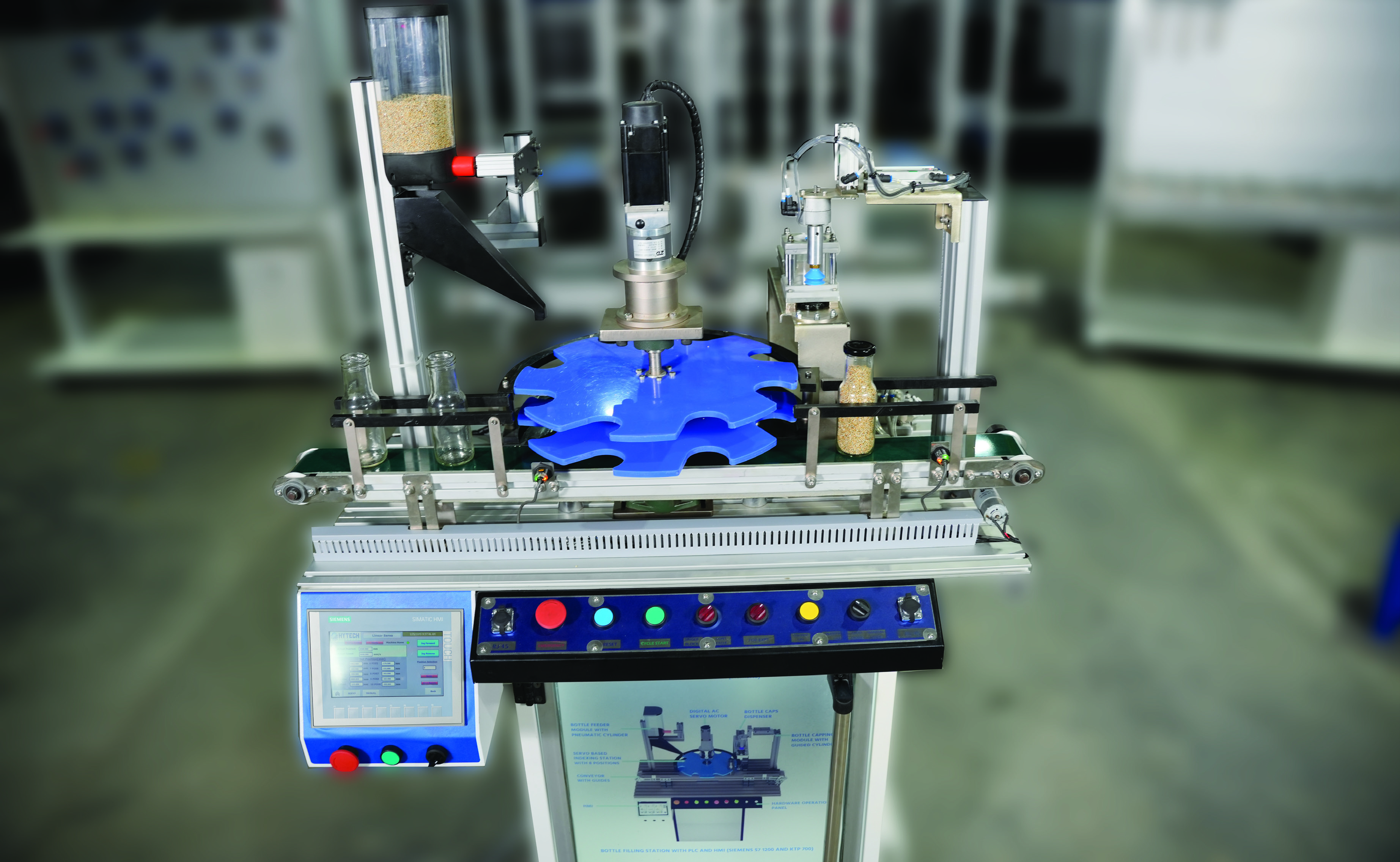

Hytech Didactic Bottle filling station is an individual mechatronics station operating on Siemens S7 1200 PLC and Siemens KTP 700 HMI.
Actual bottle filling application as well as cap assembly is carried out on this station in integration with PLC, HMI, Digital AC Servo Motor and Pneumatically actuated systems.
User can control the complete station through IIOT based remote controlled operations.
User is expected to carry out entire ladder programming to achieve desired results. Licensed Software for programming of PLC – HMI and Servo Motor are provided along with this system.

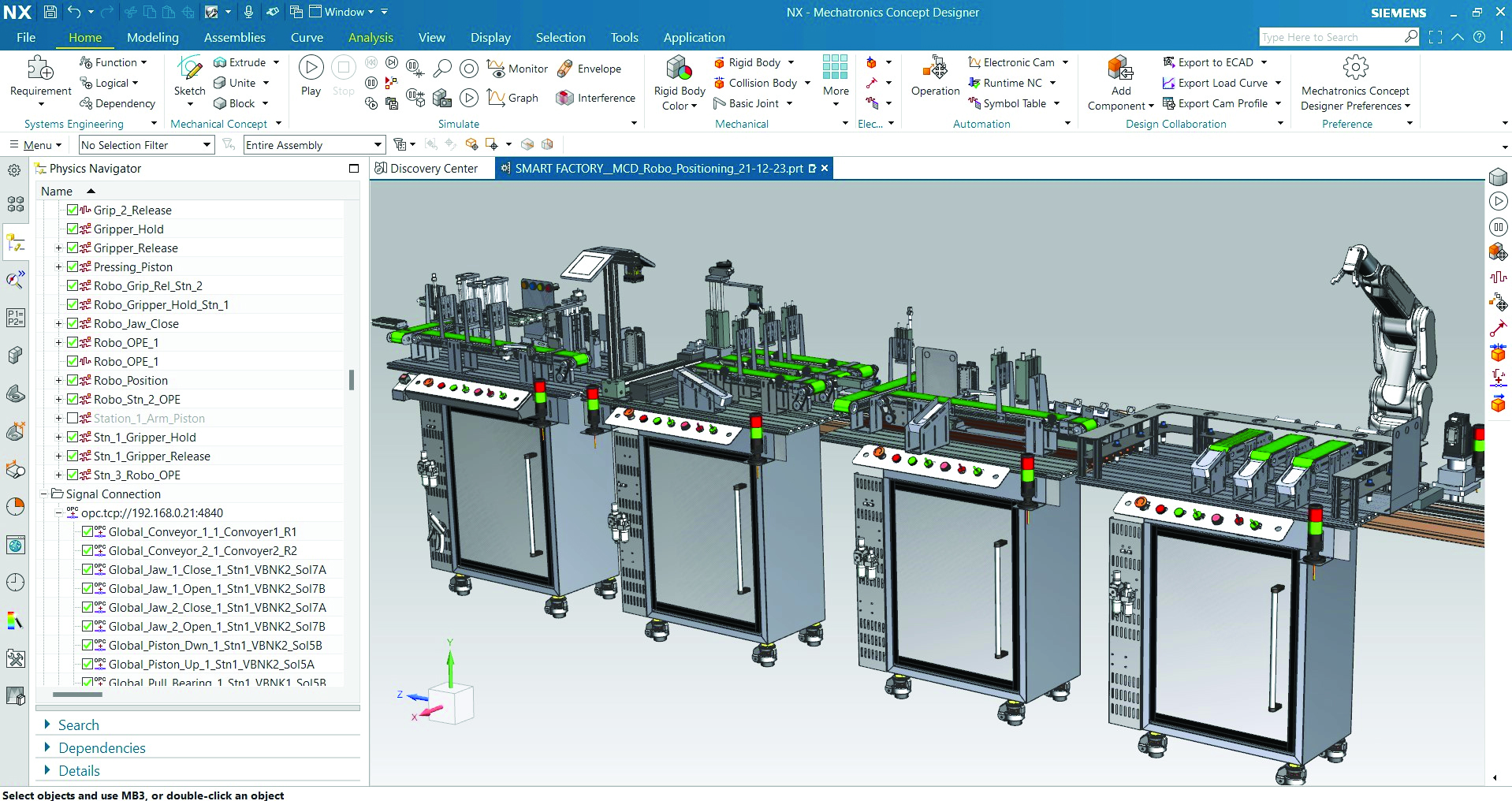

Bottle filling station is completely integrated with Siemens MCD – Mechatronics Concept Designer software which acts as a digital twin software with remote commissioning facility. IIOT with Siemens Nano box can also be integrated with this station.
Technical Specifications for PLC and HMI Controlled Automated Bottle Filling Station
| Description | Specifications |
|---|---|
| Structure | Aluminum Profile based worksurface with minimum dimensions of 1000 x 540mm |
| Panel in fabricated mild steel with 4 castor wheels | |
| Door latching switch for electrical panel | |
| Panel made in mild steel with minimum dimensions of 600mm x 400mm x 700mm (Ht) on which the aluminium work surface is mounted | |
| Automation Control | Siemens S7 1200 PLC |
| Siemens KTP 700 HMI | |
| Siemens TIA License for PLC and HMI Operations (Perpetual) | |
| 5 Port Unmanaged Switch | |
| I/O Link based Master with minimum 8 Ports | |
| Smart Light for operation indication | |
| Valve bank with 6 Solenoid Valves (5/2 Double Acting Solenoid valves) | |
| Feeding Mechanism | Bottle with filling and feeding arrangements |
| Pneumatic double acting cylinder with flow controllers | |

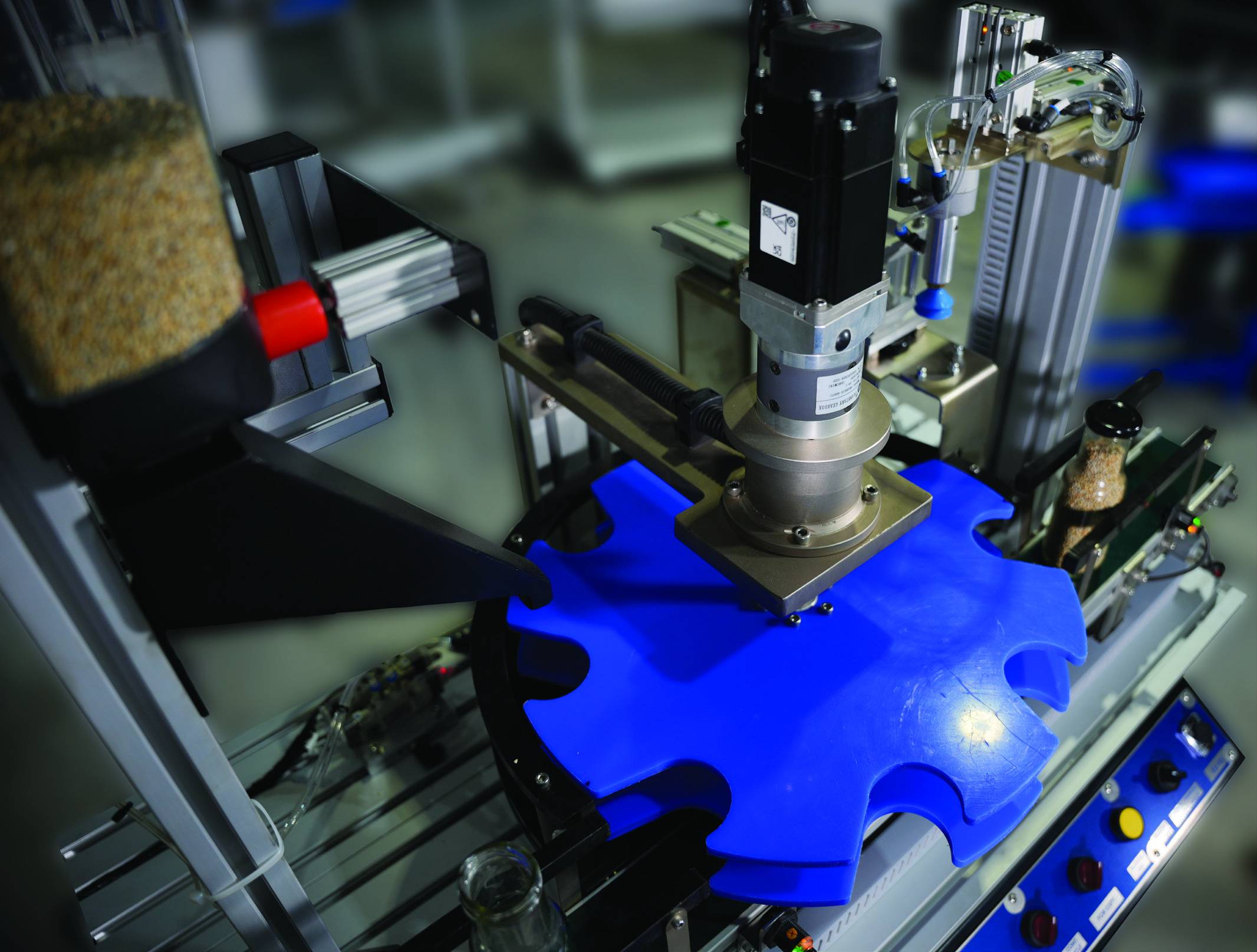

| Rotary Indexing Unit | Servo Motor (Digital AC Servo Motor with Servo Drive) |
| 8 Station indexing table | |
| Planetary Gear box | |
| nductive proximity sensor (M18) for Indexing Table referencing | |
| Conveyor | Conveyor with minimum width of 70mm and travel of 500mm |
| 2 Qty Photosensors for job detection | |
| DC Geared motor for conveyor actuation | |
| Capping Mechanism | Pneumatic Guided Cylinder (Double Acting) for automated cap feeding |
| 2 Qty Guided Double Acting Pneumatic Cylinders | |
| Pneumatic Rotary Vane Motor | |
| Pneumatically Actuated Vacuum attachment |
Operation Steps:
Step 1: Bottle Is Fed Into The System From Conveyor
Step 2: Bottle Goes Inside The Indexing Module
Step 3: Indexing Module Indexes The Bottle Below Feeder Module
Step 4: Feeder Module Is Actuated To Fill The Bottle
Step 5: Indexing Module Indexes The Bottle To Capping Module
Step 6: Cap Is Installed On The Bottle Automatically
Step 7: Bottle Comes Out Of The System On The Conveyor
